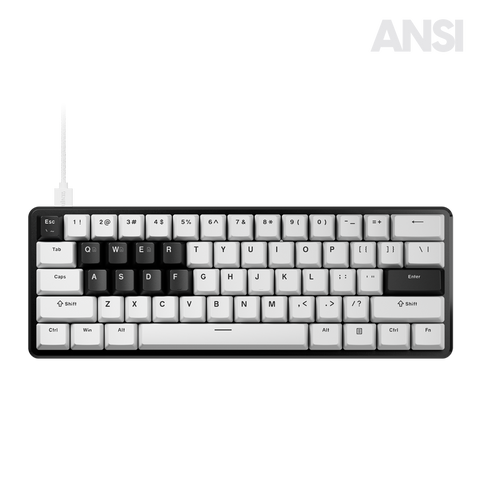

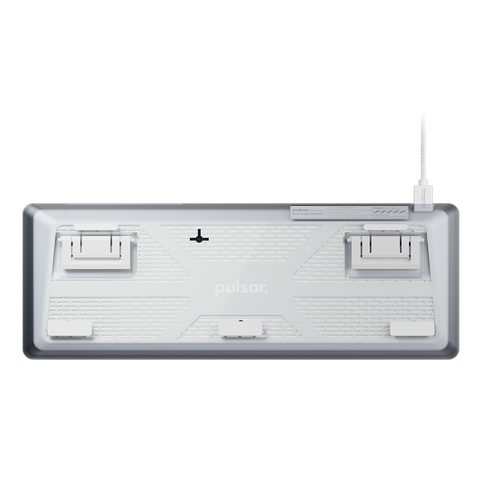

[ANSI] PCMK 3 HE 60 Hall Effect Magnetic Gaming Keyboard
- Length: 296mm (11.65in)
- Width: 106mm (4.17in)
- Height: 39mm (1.54in)
- Weight: 693g (± 1g) / 24.45oz
- 60% ANSI Keyboard(61 KEY)
- Hall Effect Magnetic switch
- True 8K Polling Rate
- Ultra Fast 35K Scan Rate
- 10-Layer PCB
- Joystic Mode
- 7-Multi MCU System
- RT Resolution 0.01mm
- Latency 0.1ms
- Rapid Trigger
- Quick Tap
- Web based Software 'Bibimbap'
- 44 Preset RGB lighting effects
- Triple absorption structure
- Adjustable Actuation 0.1mm-4mm
- Magnetic Switch N-S Pole Hot-swappable
- Windows/Mac Compatibility
- Support for 3 Profiles
- Anti-ghosting
- Aluminum Alloy Plate and Transparent body
- PBT Double-shot keycaps
- Detachable USB-C to A Cable
- Super Flexible Paracord Cable
- Type: Linear
- Initial Force: 30±7gf
- Total travel: 4.1±0.2mm
- Initial Magnetic Flux: 75±15Gs
- Bottom-out Magnetic Flux: 700±80Gs
- Lifespan: 150 million keystrokes
- USB 2.0 port or higher
- Windows 7 or higher
- Mac OS X v10.11 or higher
Latest browser with Web HID support - Chrome - version 129 and above
- Edge - 128 version or later
- Opera - 113 version or later
Compact. Magnetic. Competitive.
This 60% Hall Effect gaming keyboard delivers fast response and precise control. With magnetic switches, a 35K scan rate, and 8,000Hz polling rate, every keystroke is captured instantly for high-speed input. Rapid Trigger technology lets you adjust actuation and release points with 0.01mm accuracy, ideal for responsive gameplay. Customize RGB, key sensitivity, and joystick mode via the web-based Bibimbap software. Built on a durable 10-layer PCB, this compact keyboard combines performance and flexibility in one powerful package.
ULTRA FAST 35K
The 35K scan rate detects up to 35,000 keystrokes per second, delivering instant response with every press.Whether you're performing precision tasks or engaged in high-speed gaming, it provides outstanding control.That split-second response time can make all the difference — and decide the outcome.
-
JOYSTIC MODE
Through Web DRV and the Bibimbap configuration tool, the keyboard supports joystick mode. This allows the keyboard to function as a game controller, increasing compatibility with a wider range of games. Enjoy enhanced versatility across PC and console titles, especially those that don't natively support keyboard input. Unlock new ways to play — with joystick mode, your keyboard adapts to any game.
-
LATENCY SPEED < 0.1ms
Latency is the delay between a keypress and the action appearing on screen. With a response time of just 0.1ms, this keyboard reacts the moment you type. Enjoy smoother, more accurate control thanks to ultra-low latency performance.
-
7-MULTI MCU SYSTEM
While typical keyboards rely on a single MCU, this one features an array of 7 dedicated microcontrollers. Each MCU operates at 144Hz, independently scanning and processing key input for exceptional speed and precision. The result is ultra-smooth performance even under heavy multitouch input, with zero lag or signal loss. This parallel architecture delivers real-time responsiveness and hardware-level accuracy like no other.
10-LAYER PCB
By applying a high-end 10-layer PCB design, noise interference is minimized, enabling fast and reliable key input.
The multi-layer structure offers exceptional durability and uniform power distribution, ensuring outstanding accuracy and response speed even during high-speed or multi-key input situations.
Gateron x Pulsar Magnetic switch
The magnetic switch offers full range switch motion, detecting the actuation point of each key with an accuracy of 0.1mm. Users can customize the actuation point to their preference, enabling faster typing and an enhanced gaming experience.
Type: Linear
Initial Force: 30±7gf
Total travel：4.1±0.2mm
Initial Magnetic Lux: 75±15Gs
Bottom-out Magnetic Flux: 700±80Gs
-
Rapid Trigger
Rapid Trigger technology adjusts actuation and release points to minimize input lag. With an ultra-precise 0.01mm resolution, it detects key presses and releases with exceptional speed and accuracy. Keys activate instantly on press and deactivate quickly on release, allowing for rapid successive inputs. Ideal for FPS gamers, it delivers enhanced responsiveness and a competitive advantage.
-
Adjustable Actuation
The adjustable actuation feature allows users to customize the actuation depth of each key on the magnetic keyboard, ranging from 0.1mm to 4.0mm. This personalization enables users to optimize key responsiveness according to their individual typing style, resulting in faster and more accurate input. Tailor your keyboard experience to meet your unique preferences and enhance your overall performance.
-
Quick Tap
The Quick Tap feature enables immediate input recognition as soon as a key is touched. Unlike traditional keyboards, which require a full press and release to register an action, Quick Tap allows for input with just a light touch. This responsiveness is particularly advantageous in action games, quick skill execution, and situations requiring rapid successive strikes. Experience seamless gameplay and enhanced performance with this innovative technology.
FN+A: Activate/Deactivate Quick Tap (SOCD)
Active LED Indicator: Yellow Color
The True 8K polling rate scans the position of every key at an impressive speed of up to 8KHz, delivering smooth and rapid control. This exceptional speed minimizes keyboard latency to just 0.1ms, making it ideal for gaming scenarios where responsiveness is crucial. Experience unparalleled precision and speed for your gaming sessions.
RGB Lighting
Featuring 16.8 million colors and 44 preset effects, the RGB lighting system lets you customize your keyboard to match any mood or style.
From bold, dynamic patterns to calm, subtle glows — easily create your ideal atmosphere.
Triple Absorption Structure
Engineered with a triple sound-dampening structure, this keyboard minimizes noise and enhances the typing experience. The primary and secondary sound-absorbing materials located above and below the internal PCB effectively reduce vibrations and noise during keystrokes. Additionally, a thick silicone dampening layer on the bottom minimizes resonance. This design ensures a quieter and more comfortable usage experience, creating an undisturbed environment whether you’re gaming or working. Enjoy a refined, distraction-free atmosphere with every keystroke.
PBT DOUBLE-SHOT KEYCAP
Double injection keycaps are durable, with legends that never fade and a premium, long-lasting appearance.
ALUMINUM ALLOY BODY
Constructed from a durable aluminum plate, this keyboard effectively prevents twisting and ensures a stable typing experience.
DUAL RAIL
The dual rail system ensures precise alignment of switches without any wobbling, providing a consistent and reliable response. This design minimizes noise and maximizes switch stability, creating a comfortable and pleasant typing environment. Enjoy a seamless typing experience with enhanced accuracy and reduced distractions.
N-S POLE, HOT SWAPPABLE
Designed for magnetic switch compatibility, this product supports both N-pole and S-pole configurations, allowing users to easily customize their switch setup. This solution provides the flexibility to mix various switch types within a single keyboard, enabling the creation of a personalized typing experience. Combine different switch feels and response speeds to craft your perfect typing environment, reflecting your unique style and preferences. Enjoy unparalleled versatility and customization at your fingertips.
Web based Software 'BIBIMBAP'
Pulsar's Bibimbap is a web-based DRV that offers a customizable keyboard solution compatible with both Windows and Mac. Users can easily tailor various features, including LED color settings, rapid triggers, key response speeds, and macro functions, to create an optimized environment that suits their needs. Just like the diverse ingredients in bibimbap, mix and match different functionalities to craft your perfect keyboard.
Technical Specifications
DIMENSIONS
- Length: 296mm (11.65in)
- Width: 106mm (4.17in)
- Height: 39mm (1.54in)
- Weight: 693g (± 1g) / 24.45oz
TECHNICAL SPECIFICATION
- 60% ANSI Keyboard(61 KEY)
- Hall Effect Magnetic switch
- True 8K Polling Rate
- Ultra Fast 35K Scan Rate
- 10-Layer PCB
- Joystic Mode
- 7-Multi MCU System
- RT Resolution 0.01mm
- Latency 0.1ms
- Rapid Trigger
- Quick Tap
- Web based Software 'Bibimbap'
- 44 Preset RGB lighting effects
- Triple absorption structure
- Adjustable Actuation 0.1mm-4mm
- Magnetic Switch N-S Pole Hot-swappable
- Windows/Mac Compatibility
- Support for 3 Profiles
- Anti-ghosting
- Aluminum Alloy Plate and Transparent body
- PBT Double-shot keycaps
- Detachable USB-C to A Cable
- Super Flexible Paracord Cable
SWITCH SPECIFICATION
- Type: Linear
- Initial Force: 30±7gf
- Total travel: 4.1±0.2mm
- Initial Magnetic Flux: 75±15Gs
- Bottom-out Magnetic Flux: 700±80Gs
- Lifespan: 150 million keystrokes
REQUIREMENT
- USB 2.0 port or higher
- Windows 7 or higher
- Mac OS x 10.10 or later
Latest browser with Web HID support
- Chrome - version 129 and above
- Edge - 128 version or later
- Opera - 113 version or later
PACKAGE CONTENTS
- Keyboard x 1
- USB-C Cable x 1
- Switch + Keycap puller x 1
- Hard Dust Cover x 1
- Keyboard Pouch x 1
- Brand Sticker x 1
- Manual Set x 1
