[ANSI] eS HE 70 Gaming Keyboard
[ANSI] eS HE 70 Gaming Keyboard
[ANSI] eS HE 70 Gaming Keyboard
[ANSI] eS HE 70 Gaming Keyboard
[ANSI] eS HE 70 Gaming Keyboard
[ANSI] eS HE 70 Gaming Keyboard
[ANSI] eS HE 70 Gaming Keyboard
[ANSI] eS HE 70 Gaming Keyboard

[ANSI] eS HE 70 Gaming Keyboard

DIMENSION

  • Length: 311mm (12.2in)
  • Width: 124mm (4.88in)
  • Height: 45mm (1.77in)
  • Weight: 967g (± 1g) / 34.1oz

SPECIFICATION

  • 79KEY ANSI Layout
  • LCD Display : For quick and intuitive on-board settings
  • Raesha Magnetic Switch(Hall effect)
  • True 8K Polling Rate & 8K Scan Rate
  • Rapid Trigger: 0.05mm resolution for instant key reset
  • Quick Tap (SOCD Support): Optimized for fast-paced gaming
  • Adjustable Actuation Point
  • Dynamic RGB Lighting Effects
  • Duble absorption structure
  • Magnetic Switch swappable
  • 4 Built in Profiles
  • Anti-ghosting
  • CNC Aluminum Body
  • PBT Double-shot keycaps
  • Detachable USB-C to A Cable

SWITCH

  • Type: Linear
  • Initial Force: 28±10gf
  • Maximum Force: 55±10gf
  • Total travel：4.0±0.3mm

REQUIREMENTS

  • USB 2.0 port or higher
  • Windows 10 or higher
  • Mac OS X v10.11 or higher

GAMING KEYBOARD WITH LCD DISPLAY

The compact 70% layout PULSAR ES HE 70 keyboard features a built-in LCD display and an adjustable knob, allowing users to customize functions directly on the keyboard without installing any software. Through the intuitive screen, you can easily configure actuation point, DKS, rapid trigger, macros, and more. It features magnetic switches and vivid RGB effects for enhanced responsiveness and immersion. With a dedicated profile button on top, you can quickly switch between four onboard profiles. Directional arrow keys are also included to eliminate the usual limitations of mini keyboards. These features make it an exceptional choice for gaming.

Feature 1
70% LAYOUT
79KEY KEYBOARD
Feature 1
HALL EFFECT
RAESHA MAGNETIC SWITCH
Feature 1
TRUE 8K
UP TO 8K POLLING RATE
Feature 2
SCAN RATE 8K
ULTRA FAST SCAN RATE
Feature 3
RAPID TRIGGER
0.05mm RT RESOLUTION
Feature 4
QUICK TAP
SOCD SUPPORT
CNC BODY
ALUMINUM CNC CASE
Feature 6
LCD DISPLAY
QUICK AND INTUITIVE ADJUSTMENT

Raesha Magnetic switch

The magnetic switch offers full range switch motion, detecting the actuation point of each key with an accuracy of 0.05mm. Users can customize the actuation point to their preference, enabling faster typing and an enhanced gaming experience.

Type : Linear
Pre-travel : 0.05 ~ 4.0mm
Initial Force : 28±10gf
Maximum Force : 55±10gf
Total travel : 4.0±0.3mm

Keyboard Settings via LCD Menu

You can configure the keyboard directly through the LCD menu without installing any software.
With the knob, you can easily and quickly adjust volume, control LED brightness, navigate menus, and change settings.
(*Some features may be excluded.)

  • Rapid Trigger IconACTUATION POINT

    Easily check and adjust the actuation point via the keyboard’s LCD screen. In GLOBAL mode, you can set the AP for all keys, or choose EACH mode to adjust individual keys. Use the knob to fine-tune the AP within a range of 0.05 to 4.0mm, and visually track the key activation point in real time.

  • Adjustable Actuation Icon DYNAMIC KEY STROKE

    DKS allows you to assign two different key inputs based on the depth of a single keystroke. For example, pressing a DKS-enabled key beyond 1.0mm activates key A, and beyond 3.6mm activates key B. DKS settings and input depth behavior can be configured and checked via the LCD screen.

  • Quick Tap Icon 4 BUILT IN PROFILES

    Easily save and switch between your most-used profiles using the dedicated profile button on the top of the keyboard. The LCD menu supports saving and managing up to 4 built-in profiles, while the PC driver allows for unlimited external profiles. You can store custom profiles for different scenarios like Game Mode or Office Mode and access them instantly.

  • Rapid Trigger IconRAPID TRIGGER

    Rapid Trigger technology adjusts actuation and release points, minimizing input lag. Keys activate instantly on press and deactivate quickly on release, enabling fast inputs. Ideal for FPS gamers, it offers enhanced responsiveness and a competitive edge.

  • Adjustable Actuation Icon ADJUSTABLE ACTUATION

    The adjustable actuation feature allows users to customize the actuation depth of each key on the magnetic keyboard, ranging from 0.05mm to 4.0mm. This personalization enables users to optimize key responsiveness according to their individual typing style, resulting in faster and more accurate input. Tailor your keyboard experience to meet your unique preferences and enhance your overall performance.

  • Quick Tap IconQUICK TAP

    The Quick Tap feature enables immediate input recognition as soon as a key is touched. Unlike traditional keyboards, which require a full press and release to register an action, Quick Tap allows for input with just a light touch. This responsiveness is particularly advantageous in action games, quick skill execution, and situations requiring rapid successive strikes. Experience seamless gameplay and enhanced performance with this innovative technology.

    FN+Left shift: Activate/Deactivate Quick Tap (SOCD)
    Active LED Indicator: Left Shift, A, D

1000Hz

The True 8K polling rate scans the position of every key at an impressive speed of up to 8KHz, delivering smooth and rapid control. This exceptional speed minimizes keyboard latency. making it ideal for gaming scenarios where responsiveness is crucial. Experience unparalleled precision and speed for your gaming sessions.

  • Rapid Trigger IconSCAN RATE

    This keyboard supports an ultra-fast 8,000Hz (8K) polling rate, detecting inputs up to 8,000 times per second for near-instant responsiveness. It reacts the moment you press a key, delivering ultra-low latency performance for smoother, more precise control.

  • Adjustable Actuation Icon RGB LED EFFECT

    You can customize a variety of vibrant RGB LED effects. Turn the LEDs on or off, change to your preferred colors,and adjust the brightness and effect speed. Special modes such as Blast Mode and reactive Touch LED effects can also be configured using the dedicated software.

  • aluminum plate
    Quick Tap IconPrecision Rail Switch

    The Precision Rail Switch is engineered to replicate the advanced mechanisms of high-precision equipment, delivering exceptionally smooth and stable key input. This innovative structure significantly reduces wobble and minimizes noise, ensuring precise, finely controlled, and consistent operation. Combined with low-force springs, it offers a clean typing experience with a smooth feel and just the right amount of tactile feedback.

DUAL SILICONE STRUCTURE

This keyboard features a dual silicone dampening structure that minimizes noise and enhances typing feel. A thin dampening layer above the PCB and a thick silicone pad beneath it effectively reduce vibration and resonance, delivering a quieter and more comfortable typing experience.

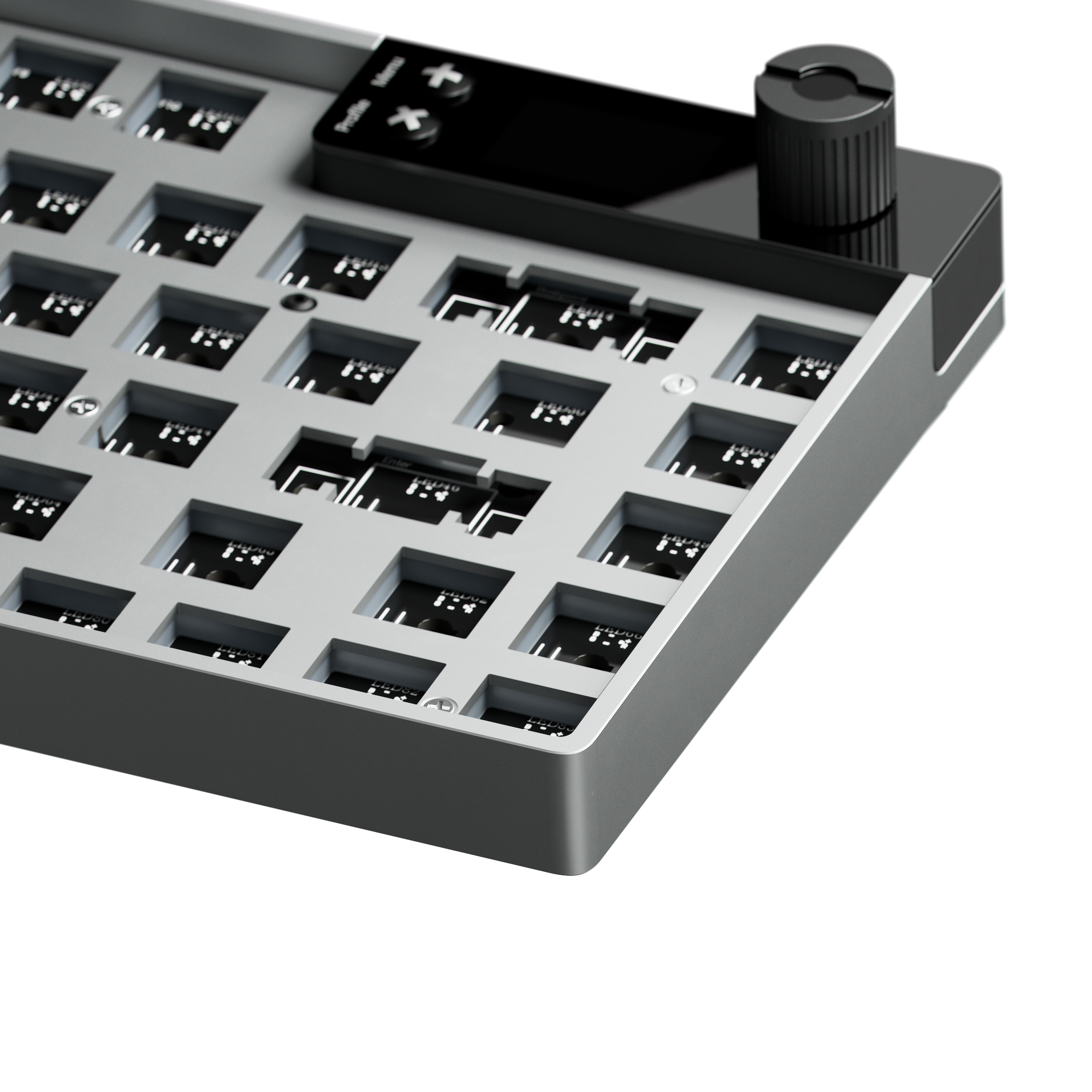

ALUMINUM CNC CASE

The precisely CNC-machined aluminum case offers exceptional durability and a premium finish.

Its solid, rigid structure ensures stable keystrokes with no flex or wobble.

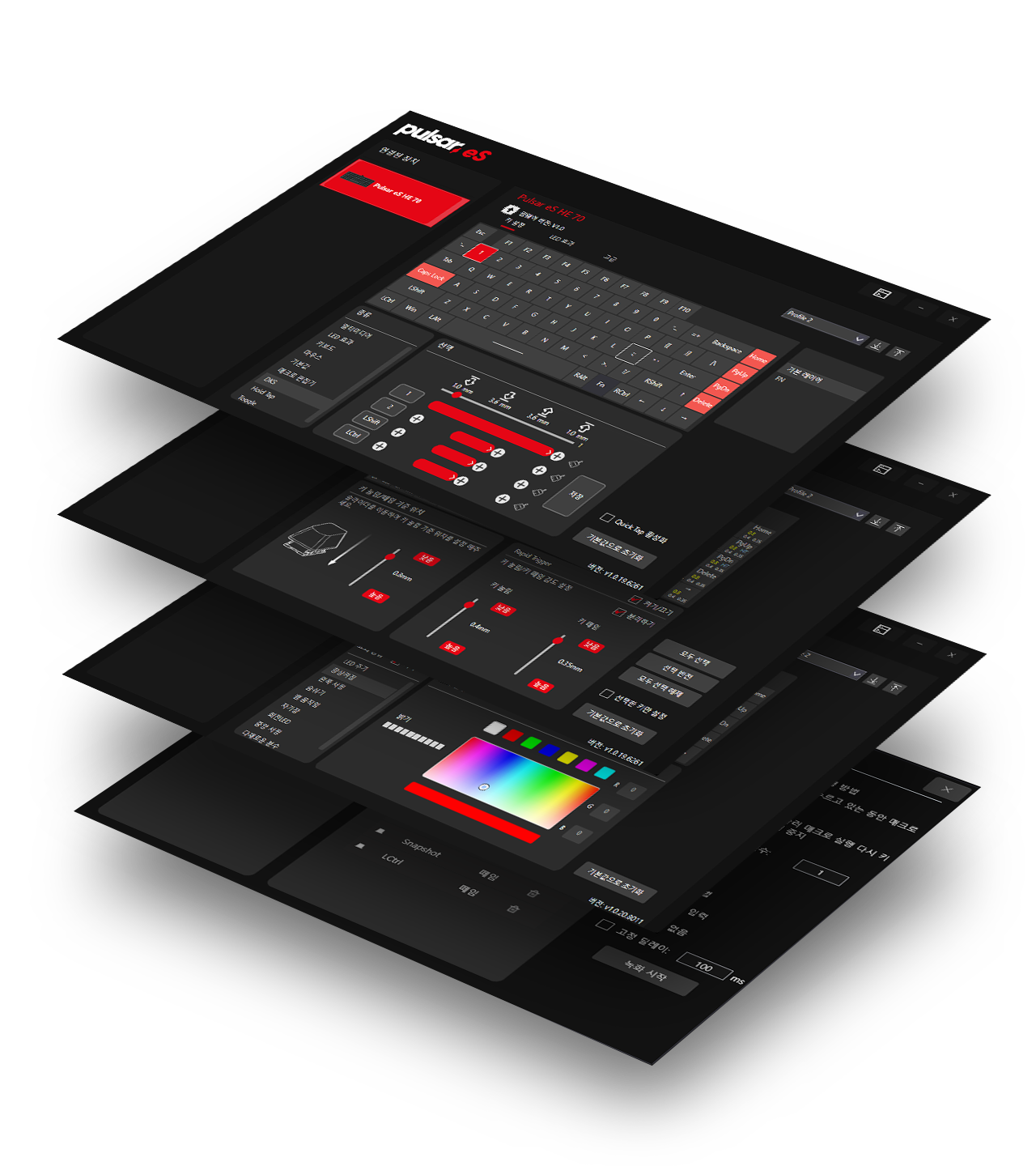

PC SOFTWARE

With the dedicated PC software, you can fully customize your keyboard’s features.You can remap each key to your preference and fine-tune RGB LED settings such as color, brightness, and animation speed. The software also allows easy creation and editing of macros, making it useful for gaming or repetitive tasks.Essential mechanical keyboard features like Actuation Point and Rapid Trigger can also be adjusted to match your personal typing or gaming style.

Technical Specifications

  • Length: 311mm (12.2in)
  • Width: 124mm (4.88in)
  • Height: 45mm (1.77in)
  • Weight: 967g (± 1g) / 34.1oz
  • 79KEY ANSI Layout
  • LCD Display : For quick and intuitive on-board settings
  • Raesha Magnetic Switch(Hall effect)
  • True 8K Polling Rate & 8K Scan Rate
  • Rapid Trigger: 0.05mm resolution for instant key reset
  • Quick Tap (SOCD Support): Optimized for fast-paced gaming
  • Adjustable Actuation Point
  • Dynamic RGB Lighting Effects
  • Duble absorption structure
  • Magnetic Switch swappable
  • 4 Built in Profiles
  • Anti-ghosting
  • CNC Aluminum Body
  • PBT Double-shot keycaps
  • Detachable USB-C to A Cable

  • Type: Linear
  • Initial Force: 28±10gf
  • Maximum Force: 55±10gf
  • Total travel：4.0±0.3mm
  • USB 2.0 port or higher
  • Windows 7 or higher
  • Mac OS x 10.10 or later
  • Keyboard x 1
  • USB-C Cable x 1
  • Switch + Keycap puller x 1
  • Switch x 3pcs
  • Keyboard Pouch x 1
  • Brand Sticker x 1
  • Manual Set x 1
